Automatic Curling 0.3mm CE Glazed Tile Roll Forming Machine

Brand Name : CANGZHOU WILLING

Model Number : Curving machine

Certification : ISO CE

Place of Origin : CHINA MAINLAND

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T, D/A, D/P

Supply Ability : 20 Sets Per Month

Delivery Time : 30 Working Days

Packaging Details : 40' FLC

Product Name : Auomatic Curving Roof Tile Roll Forming Machine

After-sales service provided : Engineers available to service machinery overseas,Video technical support,Online support,Field maintenance and repair service,Field installation

Raw material : PPGI/Galvanized Sheet

Voltage : 380/50Hz/3PH

Control system : PLC

Speed : 90deg per 4 min

thickness : 0.3mm-0.8mm

Power : 3Kw

Raw material width : 1000mm

Hydraulic station power : 3KW

Contact Now

Auomatic Curving Roof Tile Roll Forming Machine

This is a machine designed by our company to solve the water accumulation on the roof. This machine has changed the inefficiency of manual operation before adopting a modern high-efficiency fully automated PLC control system. Thereby increasing the production speed to reach an efficiency of 90° per 4 minutes. Because its bending angle can be adjusted greatly and conveniently, the limitations of traditional production are changed.

Specification
No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 0.3-0.8mm
3 Working Speed 90deg per 4 min
4 Roller Station 3 Raws
5

Dimension (L*W*H)

 1600 mm*1200 mm*1350 mm
6 Machine Weight 1.5 KG
7

Electrical Control System

Panasonic PLC

8

Drive Motor Power

 3 KW
9

Hydraulic Station Power

 3 KW
10

Power Supply

380V/60HZ/3 PH
11

Cutting Accuracy

±2 mm
12

Driving Mode

Single Chain 1 inch
13

Material of Shaft

70 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard

Application

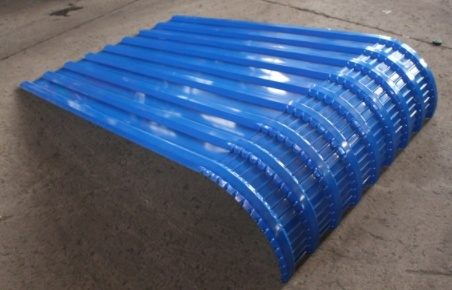

The curved roofing sheet usually used in metal roof building system, when raining the curved roofing sheet can guiding the water from panel to floor.This kind of roof system can prevent hydrops effectively.

Advantage

The machine adopts an all-steel welded structure, which has high vibration stress and high mechanical strength. Hydraulic upper transmission, stable and reliable.

Automatic Curling 0.3mm CE Glazed Tile Roll Forming Machine
